3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
Lưu trữ
3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 Support Raid 0, 1, 10 AMD TRX40 chipset : 4 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 4 x SATA 6Gb/s port(s),
LAN
Intel® I211-AT, 1 x Gigabit LAN Controller(s) Aquantia AQC-107 10G Anti-surge LANGuard ROG GameFirst V TechnologyIntel® Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth® 5.0 Supports dual band frequency 2.4/5 GHz Supports 2×2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
Bluetooth® 5.0
Âm thanh
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 – Impedance sense for front and rear headphone outputs – Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking – High quality 120 dB SNR stereo playback output 108 dB SNR recording input – ESS® ESS9018Q2C Audio Feature : – SupremeFX Shielding™ Technology – Sonic Studio III + Sonic Studio Virtual Mixer – DTS® Sound Unbound – LED-illuminated design – Brighten up your build with the gorgeous illuminated audio trace path. – Sonic Radar III
Tính năng đặc biệt
Clear CMOS button ROG CPU-Z ROG Aura – Aura Lighting Control – Aura RGB Strip Headers Extreme Engine Digi+ : – Infineon TDA21472 Power Stage – 10K Black Metallic Capacitors ROG Extreme OC kit : – OptiMem III – ReTry button – Safe Boot button – Start button – Slow Mode – LN2 Mode – FlexKey Button ProbeIt UEFI BIOS features : – ROG SSD Secure Erase – Graphic Card Information Preview USB BIOS FlashBack™ ROG Patented Pre-mounted I/O Shield ROG Exclusive Software – Mem Tweakit – RAMCache III – GameFirst V – Sonic Radar III – Sonic Studio III + Sonic Studio Virtual Mixer ROG DIMM.2 module with heatsink ROG Aluminum heatsink coverASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : – 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Gamer’s Guardian: – DRAM Overcurrent Protection – 10K Black Metallic Capacitors – DIGI+ VRM – SafeSlot – ESD Guards on LAN, Audio,and USB ports LiveDash OLED 1.77 ” AURA : – Aura Lighting Control – Aura RGB Strip Headers – Addressable Gen 2 Header ASUS Exclusive Features : – AI Suite 3 – Ai Charger+ – Pre-mounted I/O Shield – ASUS EZ Flash 3 – ASUS C.P.R.(CPU Parameter Recall) – BIOS FlashBack™ Button – Clear CMOS Button ASUS Q-Design : – ASUS Q-Code – ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED) – ASUS Q-Slot – ASUS Q-DIMM – ASUS Q-Connector Digi+VRM MemOK! II Armoury Crate

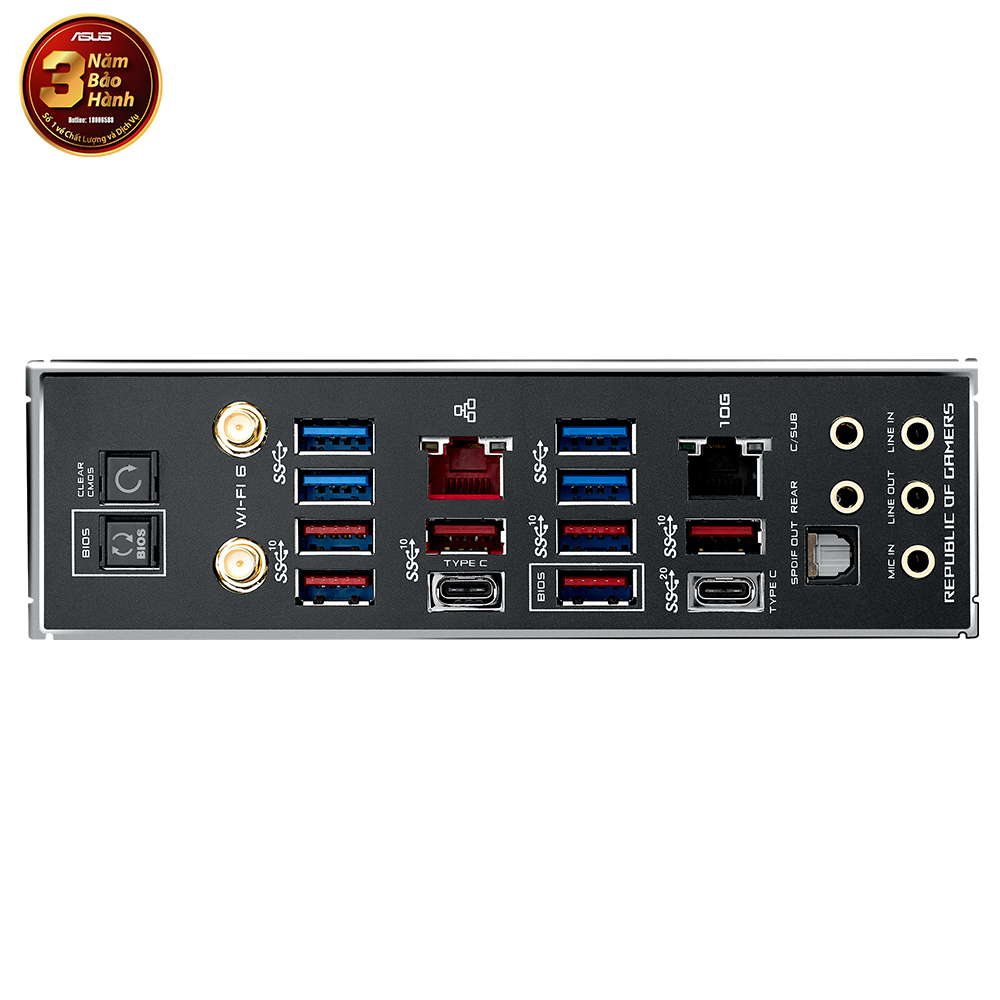

Cồng I/O sau

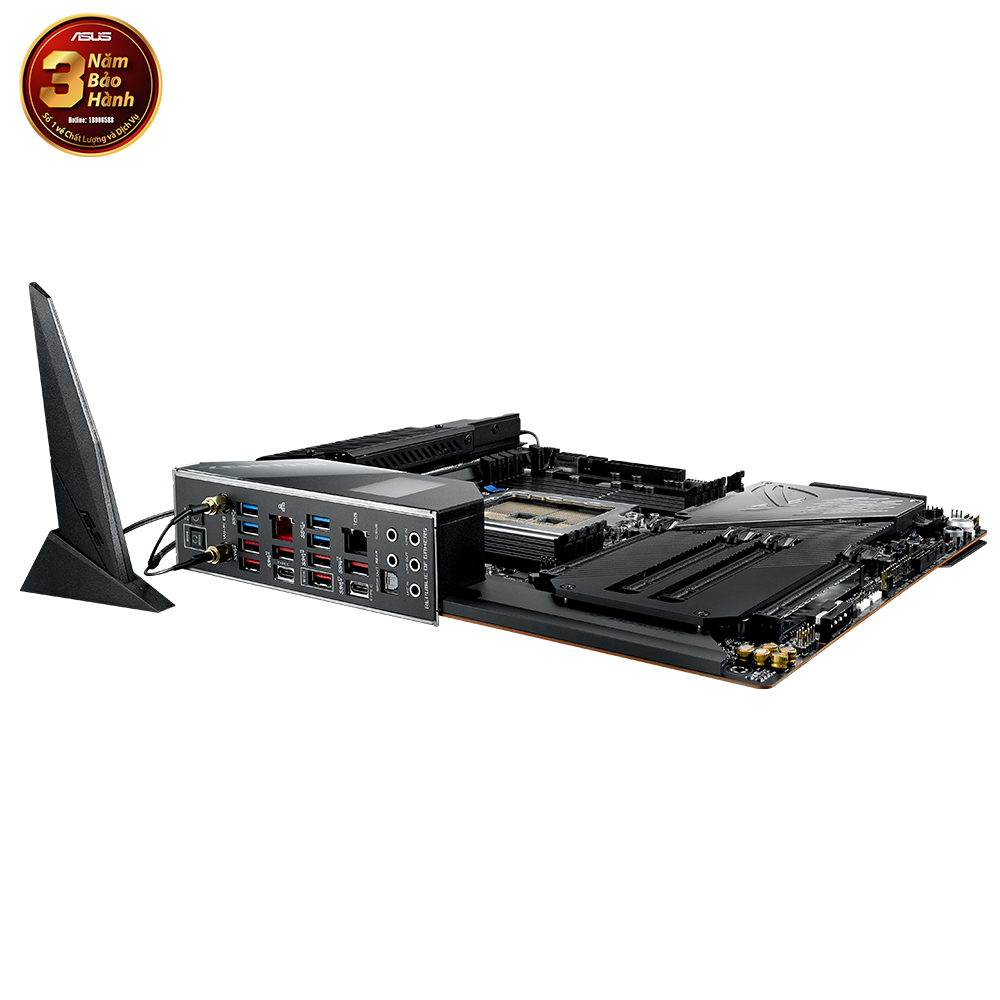

1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2×2 (up to 20Gbps) ports (Type-C) 4 x USB 3.2 Gen 1 blue 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port
Cổng I/O trong
2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 2 x W_PUMP+ connector 1 x WB_SENSOR 1 x 6-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 7 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 1 x Start button 1 x FlexKey button 1 x FS Mode switch 1 x M.2_3 cold storage Switch 1 x Chipset Fan Header 1 x VRM_HS_FAN Header
Kích cỡ thiết kế
Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )
