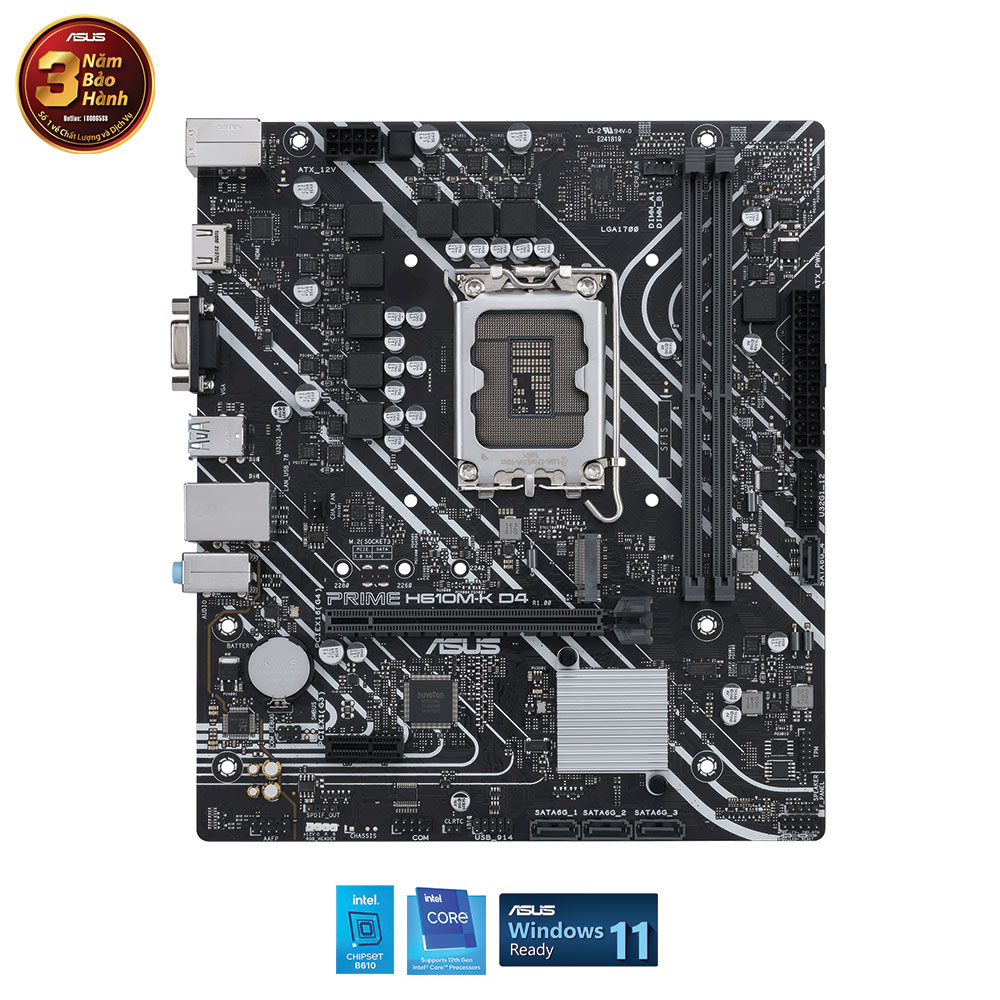

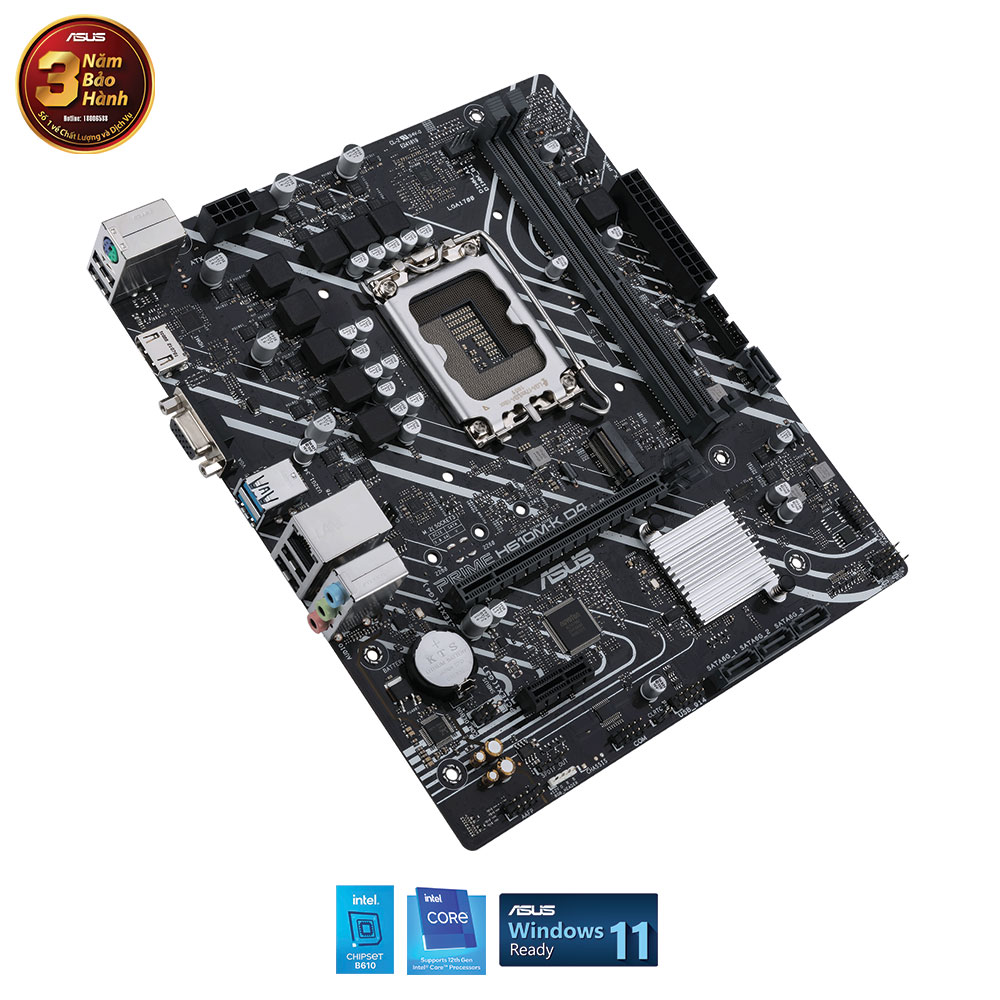

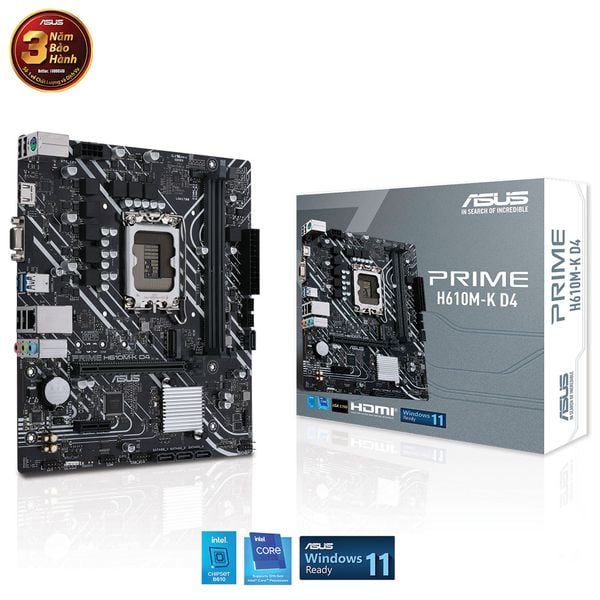

Mainboard ASUS PRIME H610M-K D4

Thương hiệu: ASUS Mã SKU: ASUS-MAIN-PRH610MKD4
  • Loại: Mainboard
  • Kiểu dáng main: mATX
  • CPU hỗ trợ: Socket 1700
  • Hỗ trợ Ram: DDR4 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
  • Hỗ trợ ổ cứng: 4 x SATA, 1 x M.2
2,540,000₫
Thời gian bảo hành: 36 tháng

Gọi đặt mua 0938.64.68.68 (8:30 - 22:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
    Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
  • Cam kết hàng chính hãng
    Cam kết hàng chính hãng
Phương thức thanh toán

ĐẶC ĐIỂM NỔI BẬT

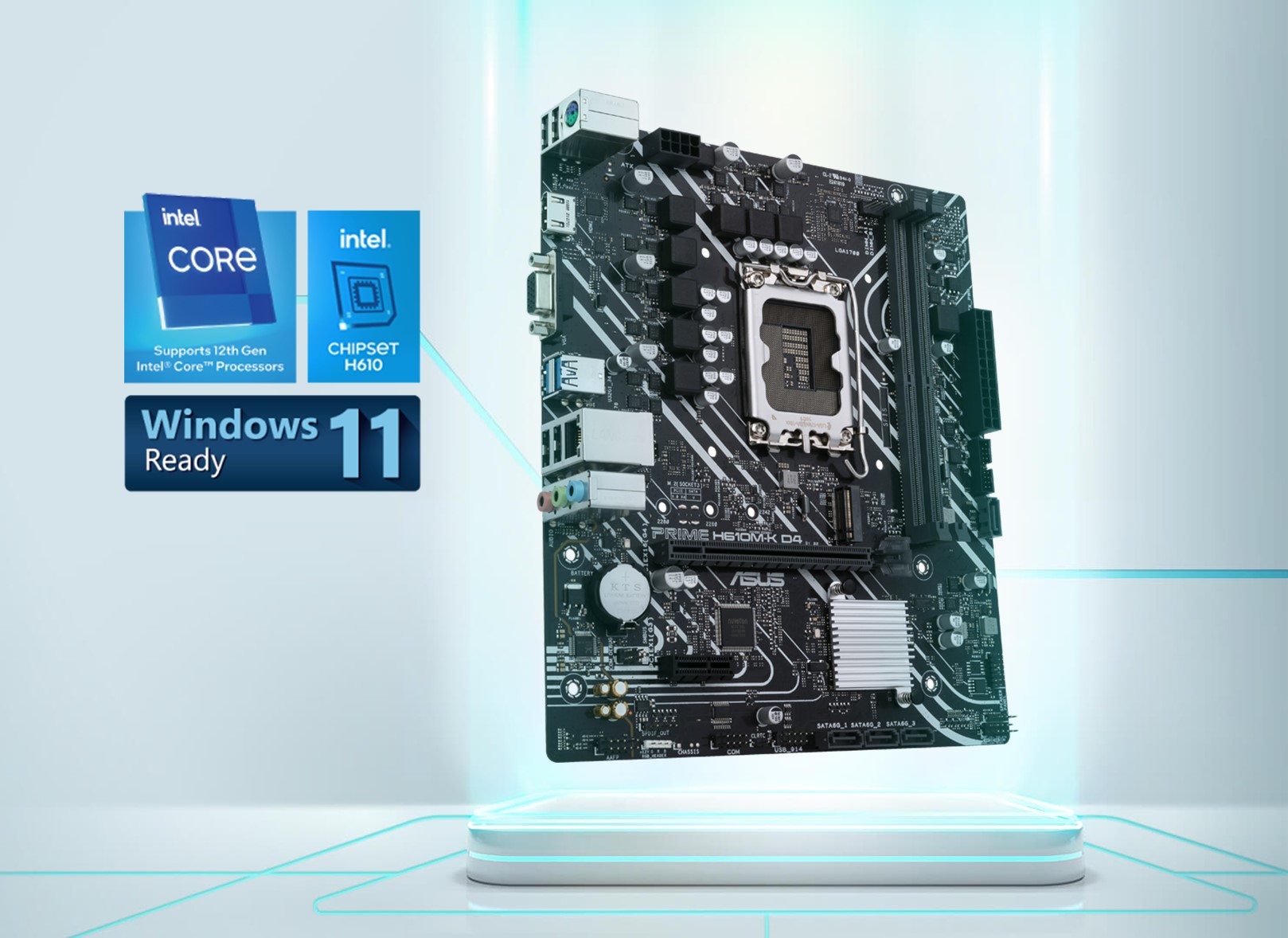

PRIME

Dòng ASUS Prime được thiết kế chuyên nghiệp để phát huy hết tiềm năng của bộ vi xử lý Intel Core thế hệ 12. Với các giải pháp làm mát toàn diện và các tùy chọn điều chỉnh thông minh, PRIME H610M-K D4 cung cấp cho người dùng một loạt các tùy chọn điều chỉnh hiệu suất thông qua phần mềm và phần cứng đi kèm.

Cổng kết nối

PRIME H610M-K D4 được trang bị đẩy đủ các cổng kết nối để bạn dễ dàng lắp đặt.

Tối ưu mức tiêu thụ điện năng

Bộ xử lý năng lượng EPU tự động tối ưu hóa mức tiêu thụ điện năng và tiết kiệm tối đa với Escape Mode

Khả năng điều khiển làm mát

Main ASUS PRIME H610M-K D4 cung cấp khả năng kiểm soát với hệ thống Fan thông qua phần mềm Fan Xpert đi kèm, tất cả được thực hiện với cú click chuột.

Khe M.2 PCIe

ASUS PRIME H610M-K D4 cung cấp khe cắm M.2 hỗ trợ tốc độ truyền dữ liệu lên đến 32 Gbps qua PCIe 3.0, cho phép thời gian khởi động và tải ứng dụng nhanh hơn với ổ đĩa hệ điều hành hoặc ứng dụng.

PCIe 4.0 slot

Main ASUS PRIME H610M-K D4 được thiết kế dành riêng cho các CPU Intel Core thế hệ 12 và cung cấp kết nối PCIe 4.0 cho các GPU mới nhất. Băng thông rộng và tốc độ truyền siêu nhanh cho phép bạn có thể xử lý tải cao một cách dễ dàng.

Intel 1Gb Ethernet

Kết nối Intel 1Gb Ethernet giúp truyền dữ liệu nhanh hơn, mượt mà hơn.

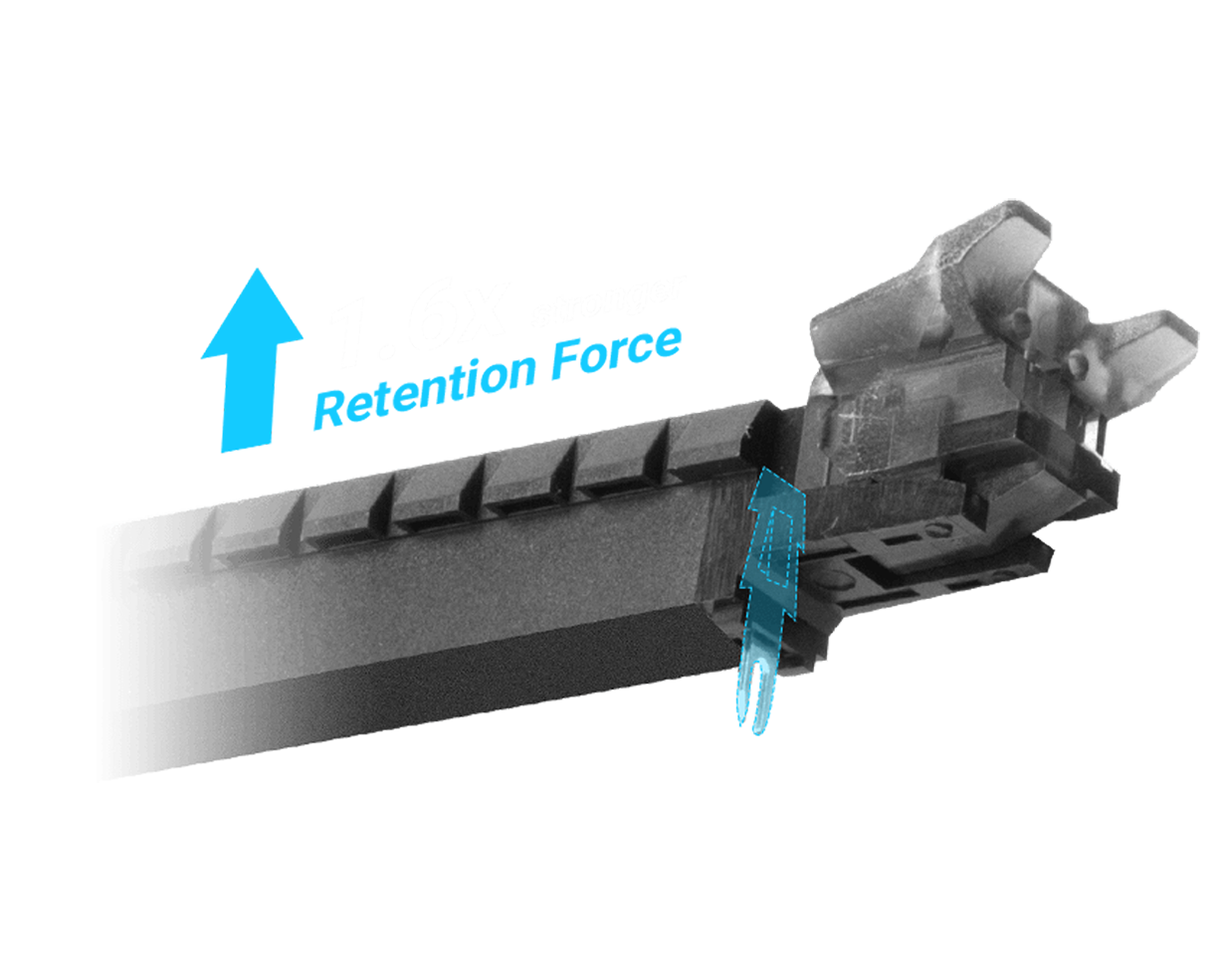

SafeSlot Core

SafeSlot Core là khe cắm PCIe độc quyền của ASUS. Với một thiết kế gia cường được gắn vào bo mạch chủ bởi một móc đặc biệt, Safeslot Core cung cấp độ bám mạnh hơn 1,6 lần và độ bền trượt gấp 1,3 lần so với các khe cắm mở rộng tiêu chuẩn.

Bảo vệ quá tải

Thiết kế mạch độc quyền với bộ điều chỉnh điện áp tích hợp để bảo vệ bo mạch chủ của bạn khỏi bị hư hỏng do điện áp mức cao bất ngờ từ nguồn điện không ổn định hoặc kém chất lượng.



THÔNG SỐ KỸ THUẬT

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.



Graphics



1 x D-Sub port

1 x HDMI® port**

* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

Intel® 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.

Ethernet

1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports



Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Dedicated audio PCB layers

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.



Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-Slot

ASUS Thermal Solution

- Aluminum heatsink design

ASUS Lighting Control

- RGB header

Software Features

ASUS Exclusive Software

Armoury Crate

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

Fan Xpert

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Manageability

 WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 ANCHOR

Installation Media

1 x Support DVD

Documentation

1 x User Guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor

9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
