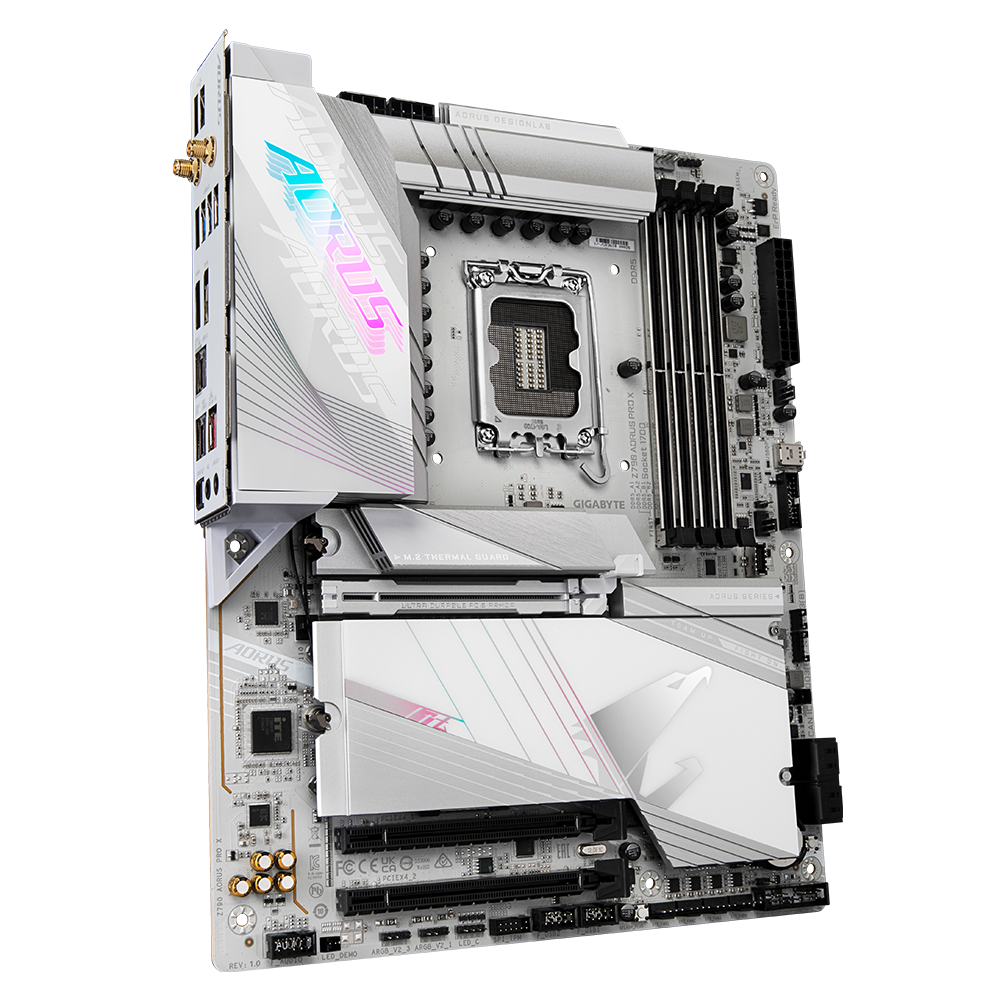

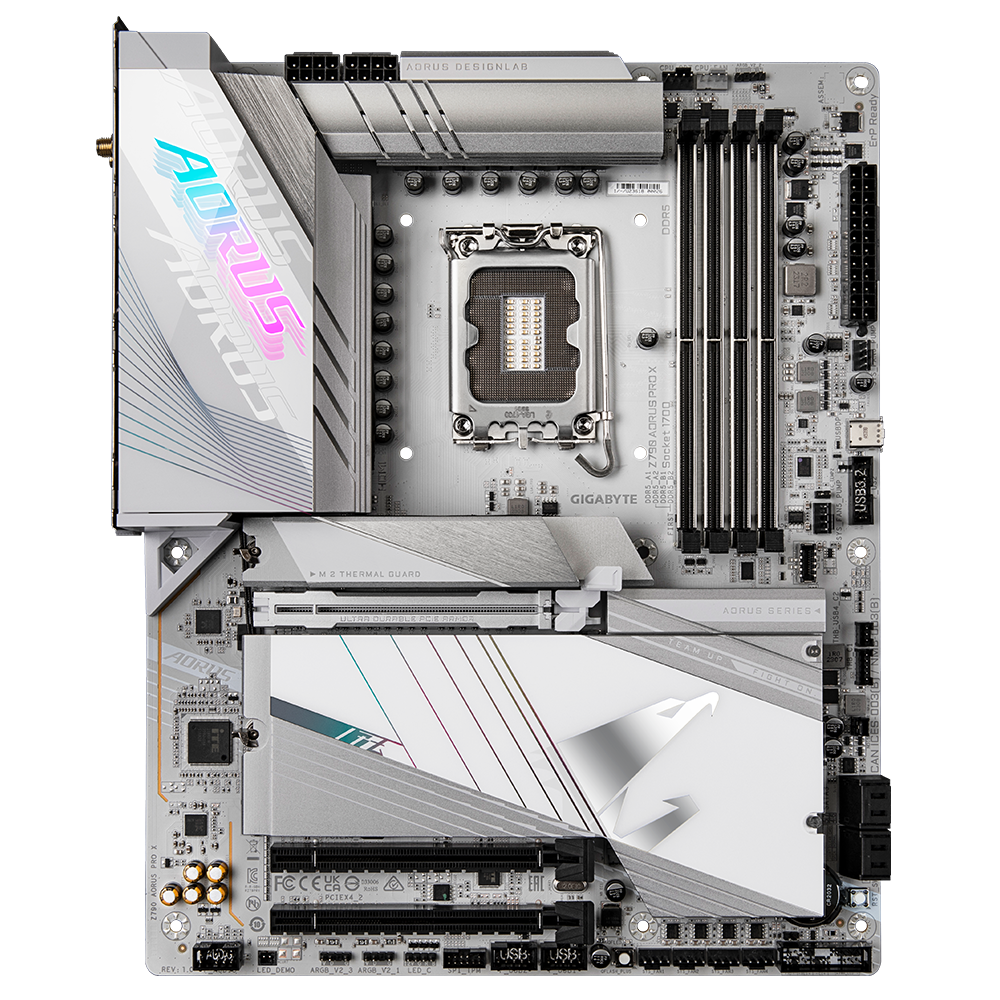

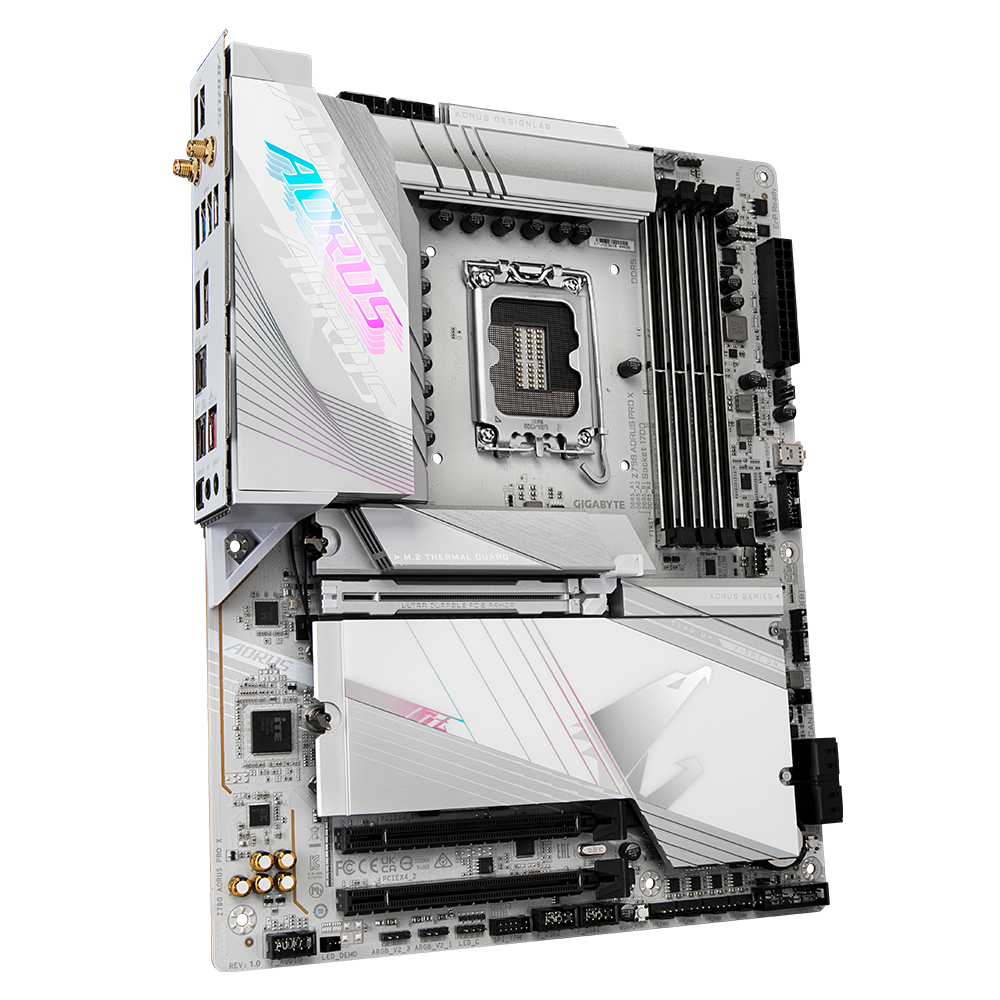

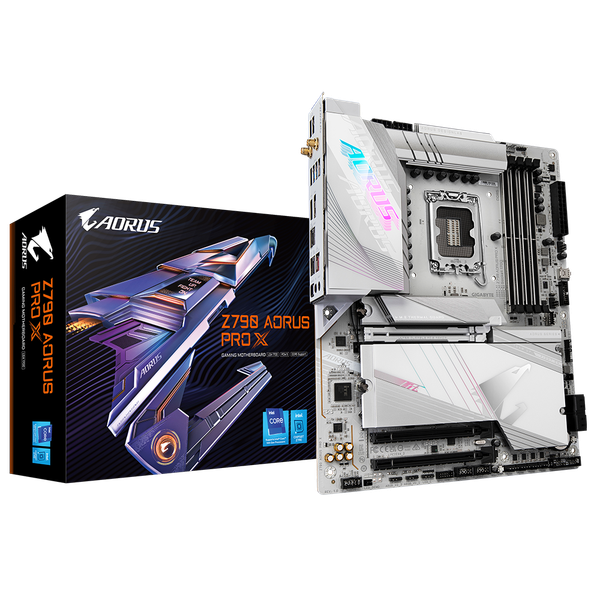

Mainboard GIGABYTE Z790 AORUS PRO X

ĐẶC ĐIỂM NỔI BẬT

GIGABYTE Z790 AORUS PRO X

Hỗ trợ cho các bộ xử lý Intel® Core™ thế hệ thứ 13 và các thế hệ tiếp theo.
Giải pháp VRM (Voltage Regulator Module) 18+1+2 pha kỹ thuật số.
Hỗ trợ bộ nhớ Dual Channel DDR5 với 4 khe cắm DIMM và hỗ trợ mô-đun nhớ XMP 3.0, cho phép sử dụng bộ nhớ với tốc độ cao.
Khe PCIe UD Slot X: Khe PCIe 5.0 x16 với khả năng chịu lực 10 lần cho thẻ đồ họa.
EZ-Latch Click: Tản nhiệt M.2 với thiết kế không cần ốc vít.
EZ-Latch Plus: Khe M.2 với thiết kế giải phóng nhanh chóng.
Sensor Panel Link: Cổng video tích hợp trên bo mạch chủ để thiết lập bảng điều khiển trong hộp máy tính một cách dễ dàng.
UC BIOS: BIOS tập trung vào người dùng với giao diện người dùng trực quan và chức năng Truy cập Nhanh.
Lưu trữ cực nhanh: Có 5 khe M.2, bao gồm 1 khe hỗ trợ PCIe 5.0 x4, cho phép lựa chọn lưu trữ với tốc độ cao.
Hiệu suất nhiệt hiệu quả tổng thể: Bao gồm VRM Thermal Armor Advanced và M.2 Thermal Guard XL để tản nhiệt hiệu quả.
Kết nối mạng nhanh chóng: Bao gồm LAN 5GbE và Wi-Fi 7 với anten cực kỳ mạnh.
Kết nối mở rộng: HDMI, DP IN, cổng USB-C® phía trước và phía sau với tốc độ 20Gb/giây.
Âm thanh chất lượng cao: Sử dụng ALC1220 và tụ âm thanh cấp audiophile.

DDR5 VƯỢT TRỘI TRONG HIỆU SUẤT

AORUS cam kết mang lại hiệu suất thế hệ tiếp theo không giới hạn. Đó là lý do tại sao mỗi bo mạch chủ Z790 AORUS PRO X được thiết kế với các công nghệ hàng đầu trong ngành để đạt được hiệu suất DDR5 hàng đầu trên thị trường.

Tương thích hàng đầu

DDR5 Overclocking Lên đến

8266 MT/s

BIOS ENGINEERING

Các tính năng phong phú trong BIOS giúp dễ dàng truy cập vào hiệu suất DDR5 hàng đầu.

DDR5 XMP Booster

Nhấn một lần để tự động tăng cường hiệu suất DDR5 của bạn lên mức cao nhất.

DDR5 Auto Booster

Nhấn một lần để tăng cường DDR5-5600 gốc lên 6000.

High Bandwidth

Nhấn một lần để tăng băng thông DDR5.

Low Latency

Nhấn một lần để giảm độ trễ DDR5.

XMP 3.0 User Profile

Tối ưu hóa các cài đặt bộ nhớ và đạt được hiệu suất tốt nhất cho hệ thống.

THIẾT KẾ VRM MẠNH MẼ

CUNG CẤP NGUỒN ƯU VIỆT

Bo mạch chủ Z790 AORUS PRO X được trang bị thiết kế nguồn toàn số để đạt đỉnh điểm hiệu suất cho bộ xử lý thế hệ tiếp theo trong khi cung cấp sự ổn định tốt nhất trong các công việc nặng.

Digital Twin VRM Design

Đảm bảo cung cấp nguồn điện cao ổn định cho quá trình ép xung tiên tiến.

VCORE Phases [105A SPS]

để khai thác toàn bộ tiềm năng của hiệu suất CPU đa lõi.

VCCGT Phase [105A SPS]

cho hiệu suất GPU tích hợp CPU

VCCAUX Phases

cung cấp nguồn ổn định cho bộ điều khiển PCIe và bộ điều khiển bộ nhớ tích hợp của CPU

HIỆU SUẤT NHIỆT HIỆU QUẢ TỔNG THỂ
Dễ dàng bảo vệ nhiệt độ của bạn

Mọi bo mạch chủ Z790 AORUS PRO X đều được trang bị bằng vật liệu nhiệt toàn bộ tiên tiến nhất. Những tản nhiệt rắn chắc này được rèn để giữ hệ thống của bạn mát mẻ trong quá trình hoạt động nhanh chóng.

Xem thêm

THÔNG SỐ KỸ THUẬT

CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
Chipset	Intel^® Z790 Express Chipset
Memory	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.2 version and HDR. - 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920x1080@30 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. (Graphics specifications may vary depending on CPU or graphics card support.)
Audio	Realtek® ALC1220-VB CODEC The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Qualcomm® Wi-Fi 7 QCNCM865 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard MediaTek Wi-Fi 7 MT7927, RZ738 (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard Intel® Wi-Fi 7 BE200 (PCB rev. 1.2) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface	CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: - 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C® port onboard, with USB 2.0 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port (DisplayPort), with USB 2.0 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper

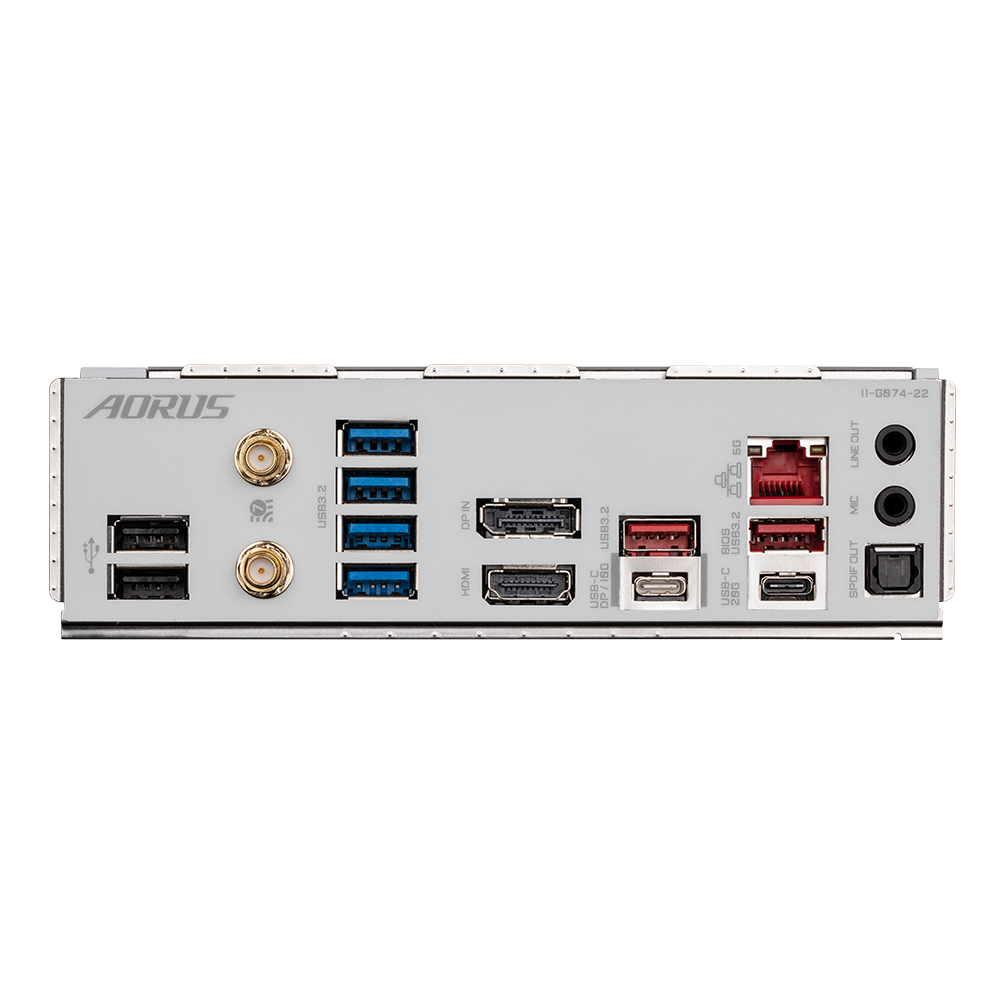

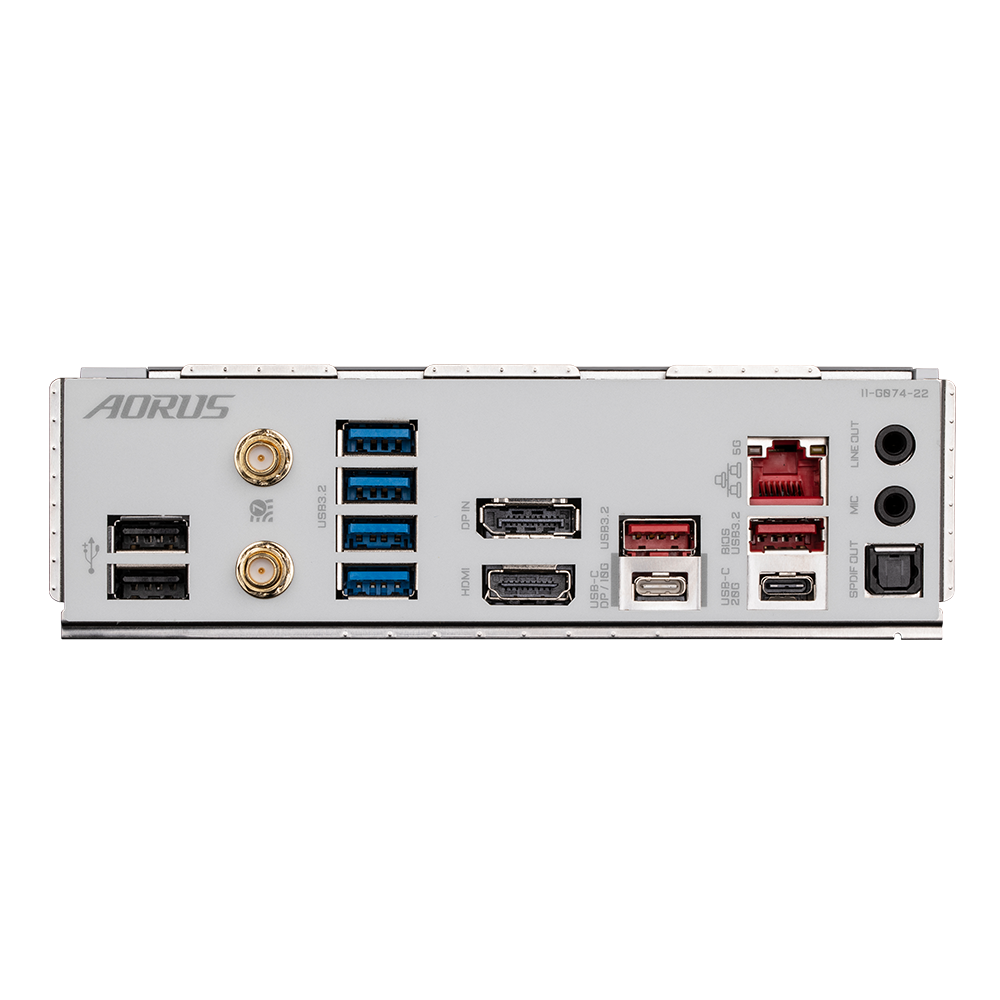

Back Panel Connectors	2 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 4 x USB 3.2 Gen 1 ports 1 x DisplayPort In port 1 x HDMI port 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup
Bundled Software	Norton^® Internet Security (OEM version) LAN bandwidth management software
Operating System	Support for Windows 11 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
