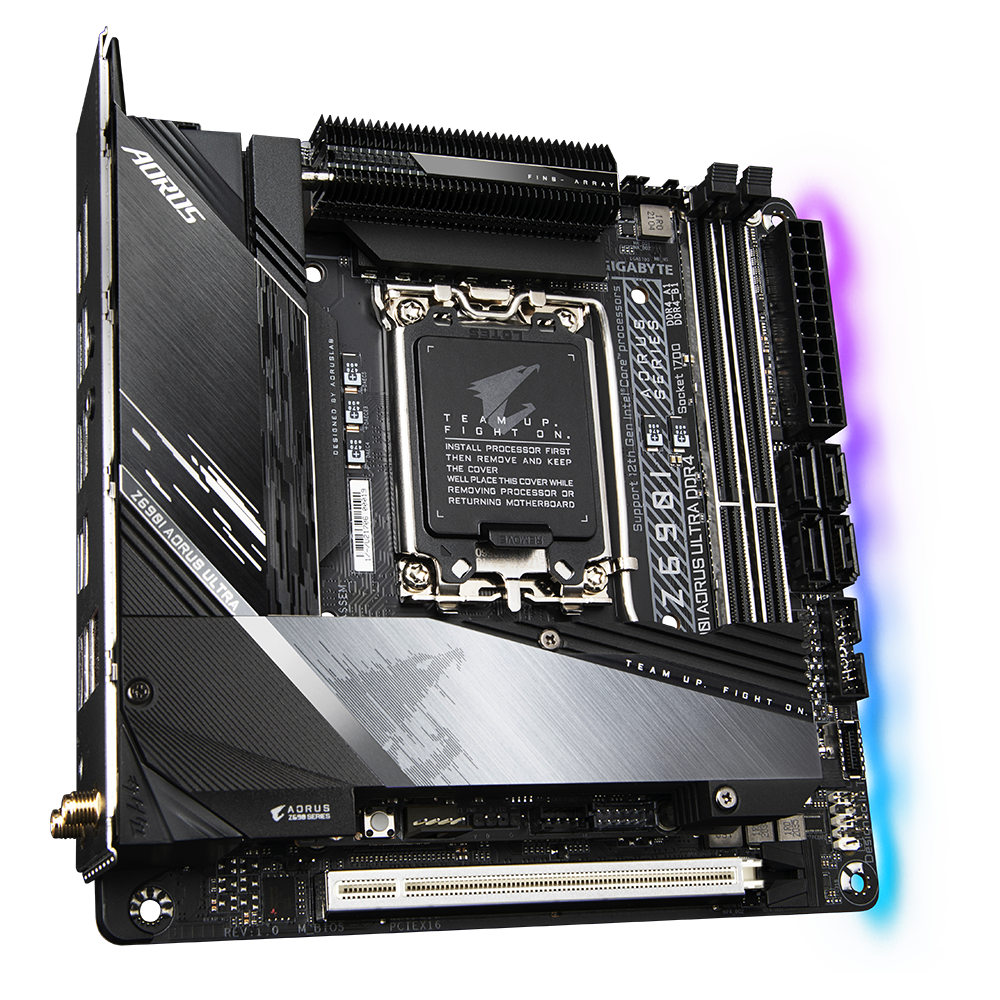

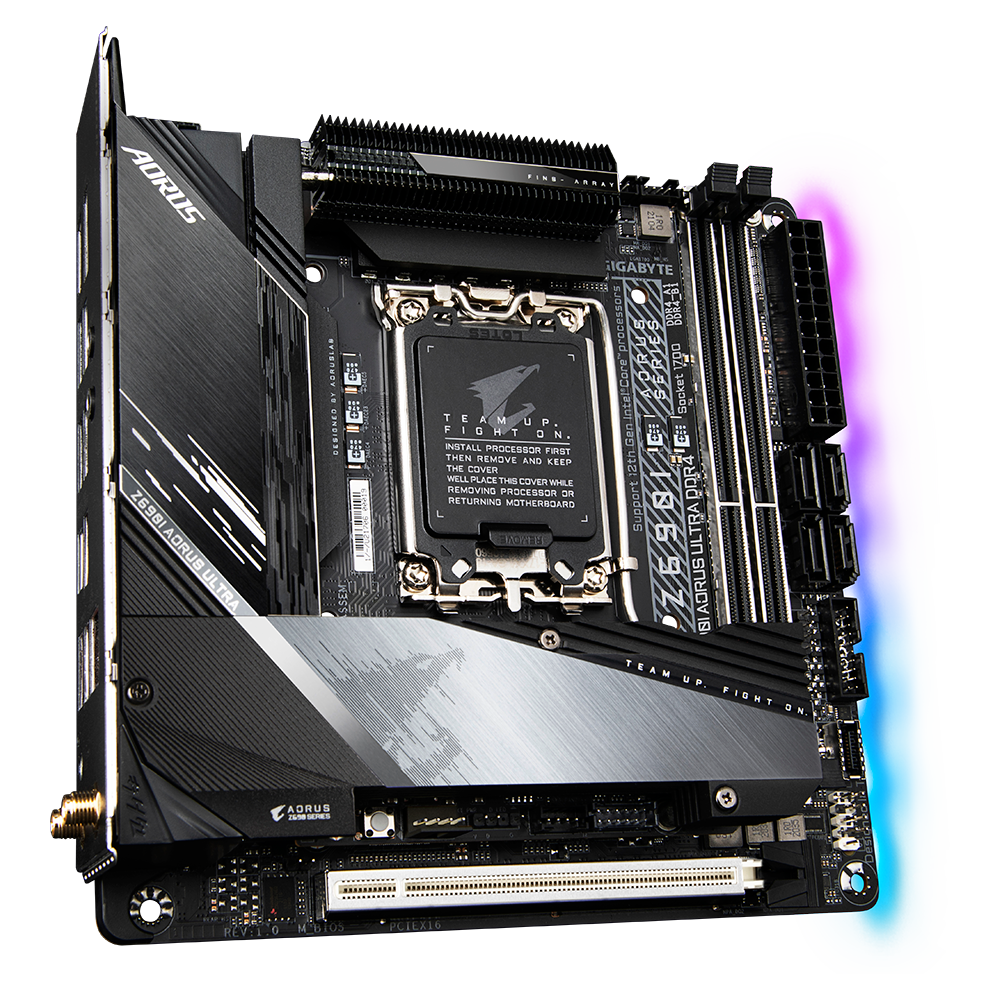

Mainboard GIGABYTE Z690I AORUS ULTRA DDR4

CPU

1. LGA1700 socket: Support for 12th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors
   (Go to GIGABYTE's website for the latest CPU support list.)
2. L3 cache varies with CPU

Socket

Socket 1700

Chipset

1. Intel^® Z690 Express Chipset

Memory

1. DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules
2. 2 x DDR DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports.
• 1 x DisplayPort port, supporting a maximum resolution of 5120x2160@60 Hz
  * Support for DisplayPort 1.4 version and HDCP 2.3
  * The DisplayPort does not support HDMI connection by adapter.
• (Graphics specifications may vary depending on CPU support.)

Audio

1. Realtek^® ALC4080 CODEC
2. Support for DTS:X^® Ultra
3. High Definition Audio
4. 2-channel

LAN

1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16
2. (The PCI Express x16 slots conform to PCI Express 5.0 standard.)

Wireless Communication module

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

Storage Interface

1. 1 x M.2 connector on the back of the GC-Z690I BTB PLUG (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

1. 1 x M.2 connector on the front of GC-Z690I BTB PLUG (Socket 3, M key, type 2242/2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
2. 4 x SATA 6Gb/s connectors

USB

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
5. 2 x USB 2.0/1.1 ports on the back panel

1. 4 x USB 2.0/1.1 ports available through the USB headers on the front of GC-Z690I BTB PLUG

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x external power connector^{(Note 1)}
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 2 x system fan headers(SYS_FAN1/SYS_FAN2^{(Note 1)})
7. 1 x addressable LED strip header^{(Note 1)}
8. 1 x RGB LED strip header
9. 2 x M.2 Socket 3 connectors(M2A_CPU^{(Note 2)}/M2P_SB^{(Note 1)})
10. 4 x SATA 6Gb/s connectors
11. 1 x front panel header
12. 1 x front panel audio header
13. 1 x speaker header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 1 x USB 2.0/1.1 header^{(Note 1)}
17. 1 x reset button^{(Note 1)}
18. 1 x reset jumper
19. 1 x Clear CMOS jumper

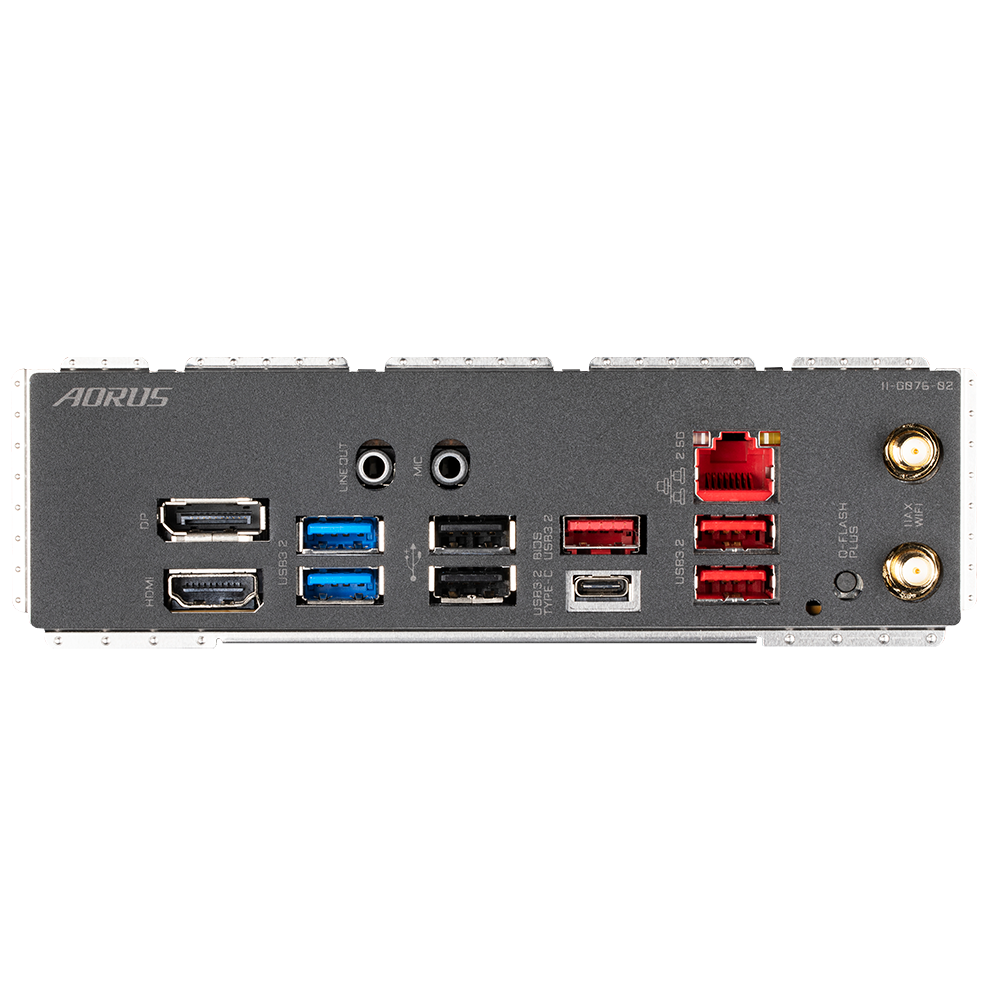

Back Panel Connectors

1. 2 x SMA antenna connectors (2T2R)
2. 1 x DisplayPort
3. 1 x HDMI port
4. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
5. 3 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x USB 3.2 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x Q-Flash Plus button
9. 1 x RJ-45 port
10. 2 x audio jacks

Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor

1. Mini-ITX Form Factor; 17.0cm x 17.0cm
