Mainboard GIGABYTE Z690 AORUS TACHYON

CPU

1. LGA1700 socket: Support for 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. L3 cache varies with CPU

Socket

Socket 1700

Chipset

1. Intel^® Z690 Express Chipset

Memory

1. Support for DDR5 7000(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
2. 2 x DDR5 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports

Audio

1. Realtek^® ALC1220-VB CODEC
   * The back panel line out jack supports DSD audio.
2. Support for DTS:X^® Ultra
3. High Definition Audio
4. 2/4/5.1/7.1-channel
5. Support for S/PDIF Out

LAN

1. Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x8 (PCIEX8)
   * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
   (The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
3. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
   (The PCIEX4 slot conforms to PCI Express 3.0 standard.)

Wireless Communication module

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.2
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

Multi-Graphics Technology

1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Storage Interface

1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

1. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
3. 6 x SATA 6Gb/s connectors

USB

1. 2 x USB Type-C^® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header

1. 1 x USB 3.2 Gen 2 Type-A port (red) onboard

1. 4 x USB 3.2 Gen 1 ports on the back panel

1. 4 x USB 2.0/1.1 ports available through the internal USB headers

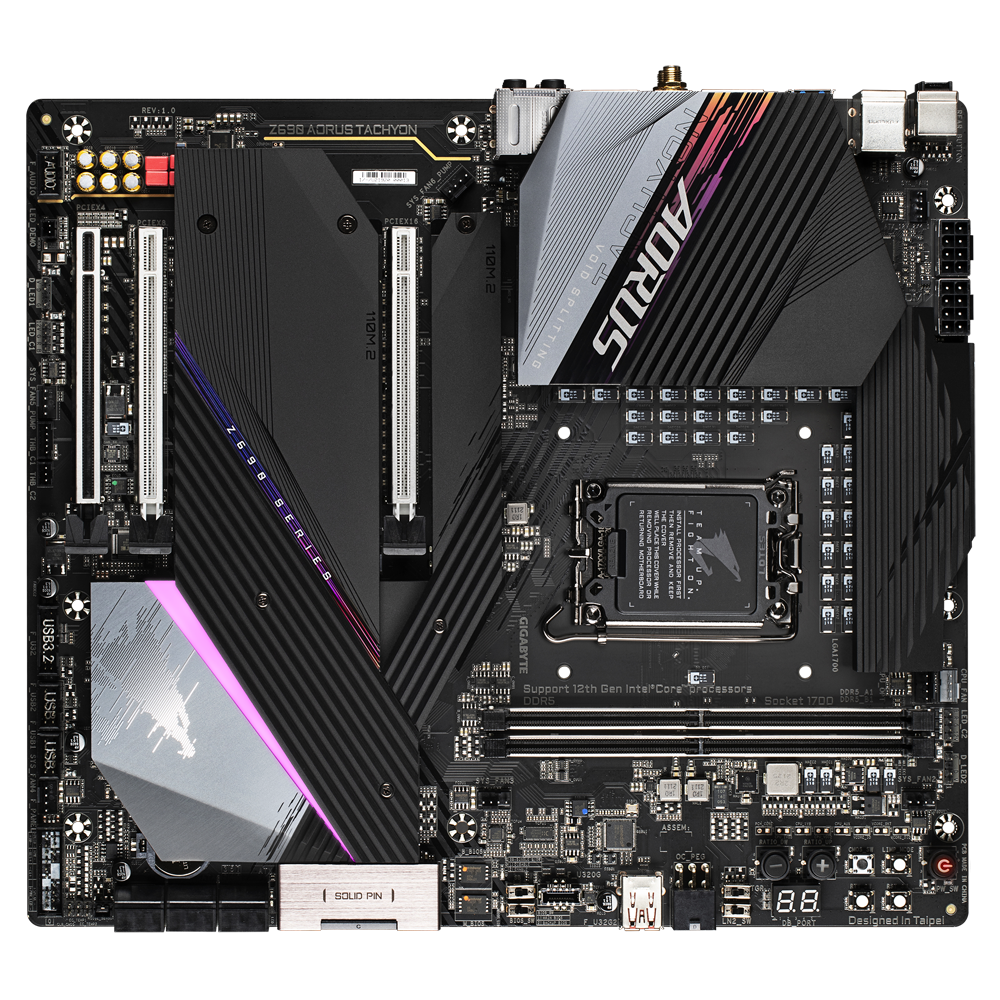

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x 6-pin OC_PEG power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 4 x system fan headers
7. 2 x system fan/water cooling pump headers
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
15. 1 x USB 3.2 Gen 2 Type-A port (red)
16. 1 x USB 3.2 Gen 1 header
17. 2 x USB 2.0/1.1 headers
18. 1 x noise detection header
19. 2 x Thunderbolt™ add-in card connectors
20. 2 x temperature sensor headers
21. Voltage Measurement Points
22. 1 x Clear CMOS jumper
23. 1 x power button (PW_SW)
24. 1 x reset button (RST_SW)
25. 1 x Clear CMOS button (CMOS_SW)
26. 1 x Cold Reset button (RTY_SW)
27. 1 x Protection Mode button (LIMP_MODE)
28. 2 x BIOS switches (BIOS_SW/SB)
29. 1 x CPU Ratio up button (RATIO_UP)
30. 1 x CPU Ratio down button (RATIO_DW)
31. 1 x OC Trigger switch (TGR)
32. 1 x Reserved switch (RSV_SW)

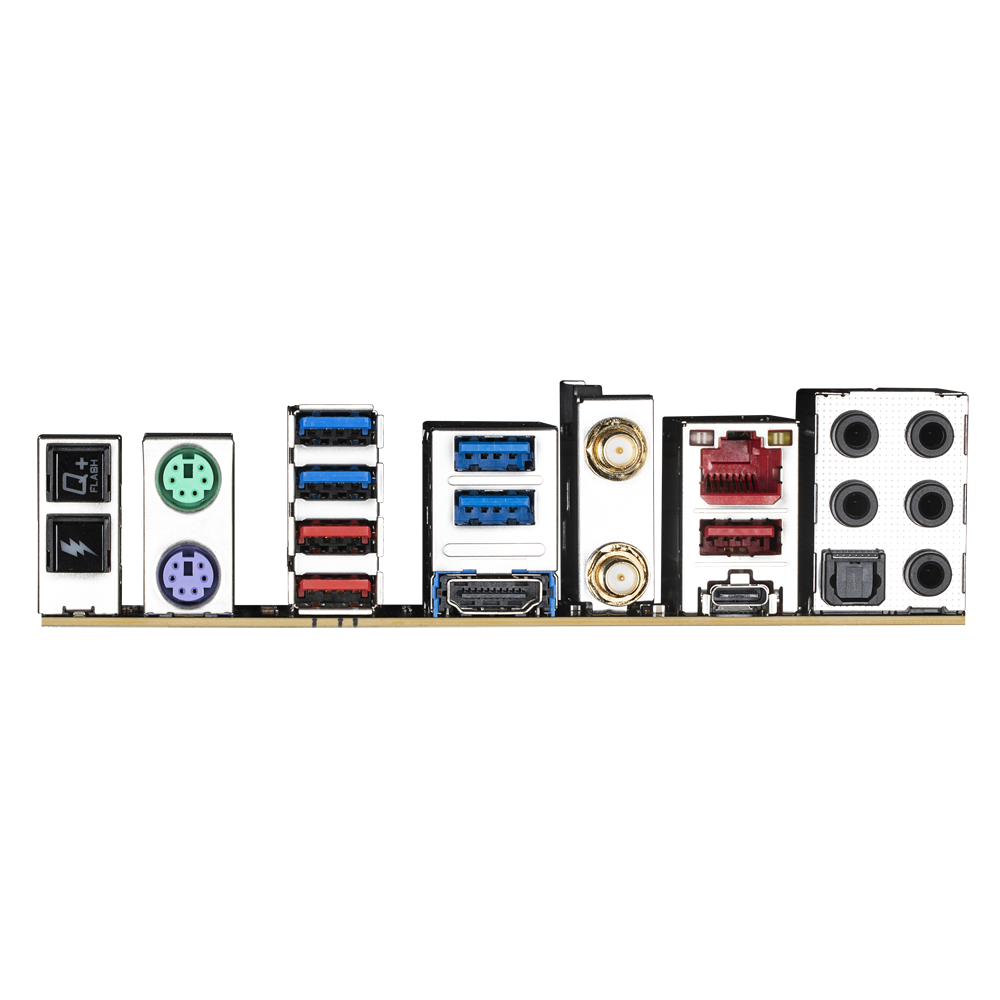

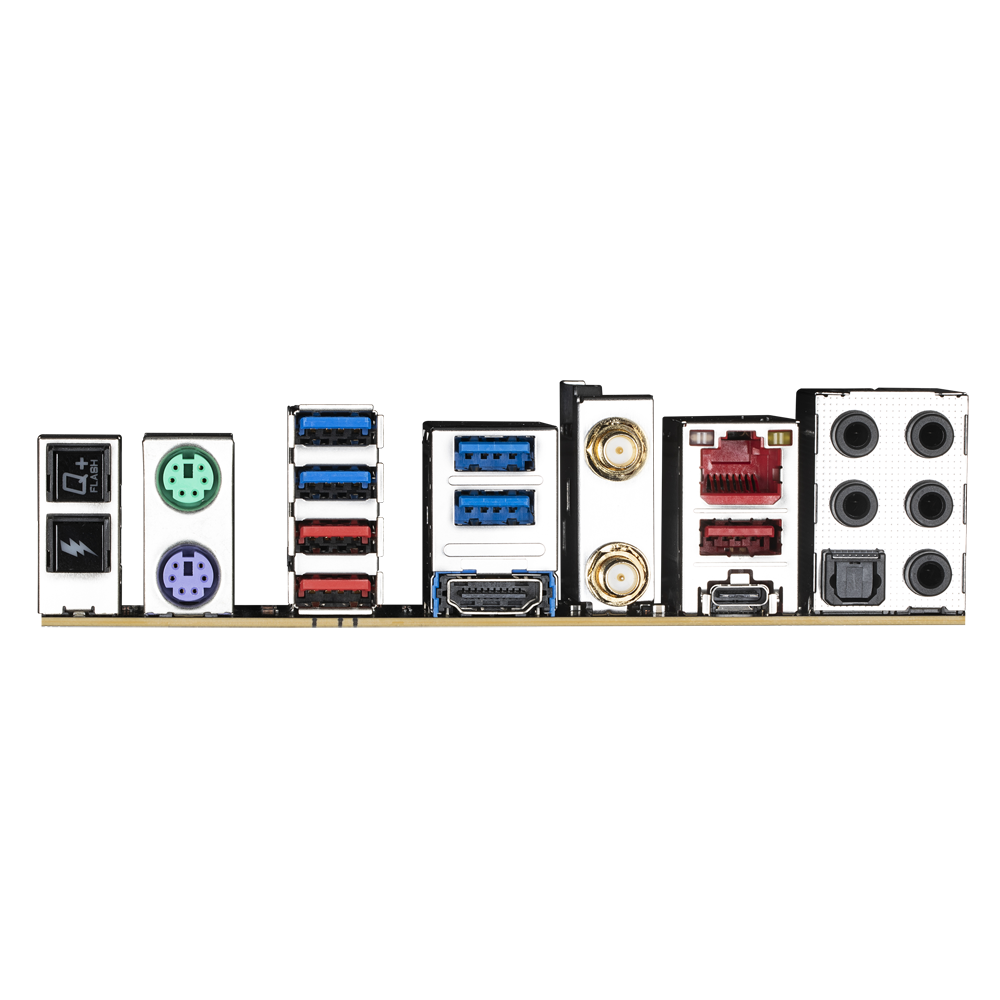

Back Panel Connectors

1. 1 x Q-Flash Plus button
2. 1 x OC Ignition button
3. 1 x PS/2 keyboard port
4. 1 x PS/2 mouse port
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI port
7. 1 x USB Type-C^® port, with USB 3.2 Gen 2x2 support
8. 3 x USB 3.2 Gen 2 Type-A ports (red)
9. 4 x USB 3.2 Gen 1 ports
10. 1 x RJ-45 port
11. 1 x optical S/PDIF Out connector
12. 5 x audio jacks

Operating System

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

Form Factor

1. E-ATX Form Factor; 30.5cm x 27.0cm
