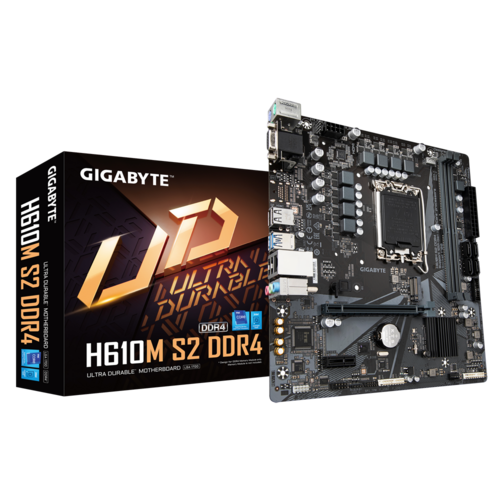

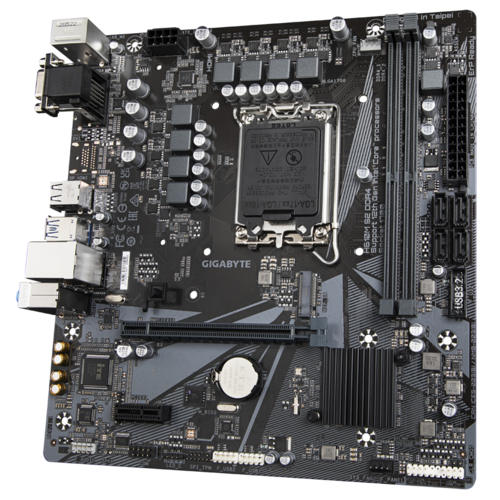

Mainboard GIGABYTE H610M S2 DDR4

Thương hiệu: GIGABYTE Mã SKU: GIGABYTE-MAIN-H610MS2D4
  • Chipset: Intel H610
  • Socket: LGA1700
  • RAM: DDR4 up to 64GB
  • Kích thước: M-ATX
2,390,000₫
Thời gian bảo hành: 36 tháng

Gọi đặt mua 0938.64.68.68 (8:30 - 22:00)

  • Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
    Giao hàng miễn phí trong 24h (chỉ áp dụng khu vực nội thành)
  • Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
    Trả góp lãi suất 0% qua thẻ tín dụng Visa, Master, JCB
  • Cam kết hàng chính hãng
    Cam kết hàng chính hãng
Phương thức thanh toán

ĐẶC ĐIỂM NỔI BẬT

Gigabyte H610M S2 DDR4 là dòng bo mạch chủ chipset H610 phổ thông, phù hợp với các vi xử lý Pentium, Celeron,i3 & i5 non K thế hệ Alder Lake.

Gigabyte H610M S2 DDR4

Tính năng nổi bật

  • Khe M.2 PCI-e Gen 3 cho SSD M.2 tốc độ cao
  • Khe PCI-E gen 4
  • Dàn phase nguồn 6+1+1 chất lượng

Gigabyte H610M S2 DDR4

Bo mạch chủ này dành cho ai?

Gigabyte H610M S2 DDR4 phù hợp với các bộ máy tính phổ thông và tầm trung, cho nhu cầu chơi game và làm việc văn phòng cũng như Multimedia cơ bản.



Mạng LAN tốc độ cao Gigabit với phân bổ băng thông tự động

Realtek 8118 LAN là chip mạng hiệu suất cao và thân thiện với người chơi game với phân bổ băng thông tự động. Đảm bảo ưu tiên mạng cao nhất của trò chơi hoặc ứng dụng. Nó có thể cung cấp cho người dùng những tính năng toàn diện nhất và trải nghiệm Internet mượt mà và nhanh nhất.

Mainboard Gigabyte H610M S2 DDR4

Đầu nối NVMe PCIe Gen3 x4 M.2

Mainboard Gigabyte H610M S2 DDR4 tập trung vào việc cung cấp công nghệ M.2. Cho những người đam mê muốn tối đa hóa tiềm năng hệ thống của họ

Mainboard Gigabyte H610M S2 DDR4

BẮT ĐẦU BẢO VỆ SULFURIZATION

Các hợp chất lưu huỳnh trong không khí có thể xuyên qua các điện trở cực nhỏ trên bo mạch tạo ra sự thay đổi hóa học. Khiến các điện trở này bị hở hoặc ngắn. Nếu một trong hai điều này xảy ra, bo mạch chủ sẽ không hoạt động. Bằng cách trang bị điện trở với Thiết kế chống lưu huỳnh GIGABYTE. Mang đến cho Bo mạch chủ siêu bền một ý nghĩa hoàn toàn mới.

Mainboard Gigabyte H610M S2 DDR4

Trình xem thông tin hệ thống

GIGABYTE System Information Viewer là vị trí trung tâm cho phép bạn truy cập vào trạng thái hệ thống hiện tại của mình. Theo dõi các thành phần như đồng hồ và bộ xử lý. Đặt cấu hình tốc độ quạt ưa thích của bạn. Tạo cảnh báo khi nhiệt độ quá cao hoặc ghi lại hành vi của hệ thống của bạn. Đây là những khả năng của Trình xem Thông tin Hệ thống.

Mainboard Gigabyte H610M S2 DDR4

EasyTune ™

GIGABYTE’s EasyTune ™ là một giao diện đơn giản và dễ sử dụng cho phép người dùng tinh chỉnh cài đặt hệ thống của họ hoặc điều chỉnh đồng hồ và điện áp của hệ thống và bộ nhớ trong môi trường Windows. Với Smart Quick Boost, chỉ cần một cú nhấp chuột là có thể tự động ép xung hệ thống của bạn, giúp tăng hiệu suất khi bạn cần nhất.

Mainboard Gigabyte H610M S2 DDR4

THÔNG SỐ KỸ THUẬT

CPU
  1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors
  2. L3 cache varies with CPU
(Please refer to "CPU Support List" for more information.)

Chipset

Intel® H610 Express Chipset

Memory

  1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
(Graphics specifications may vary depending on CPU support.)
Audio

  1. Realtek® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

LANRealtek® GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

  1. 1 x PCI Express x16 slot, running at x16
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
  2. 1 x PCI Express x1 slot
    (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)

Storage Interface

Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
USBChipset:
  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x M.2 Socket 3 connector
  4. 4 x SATA 6Gb/s connectors
  5. 1 x CPU fan header
  6. 2 x system fan headers
  7. 1 x RGB LED strip header
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 2 x USB 2.0/1.1 headers
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper

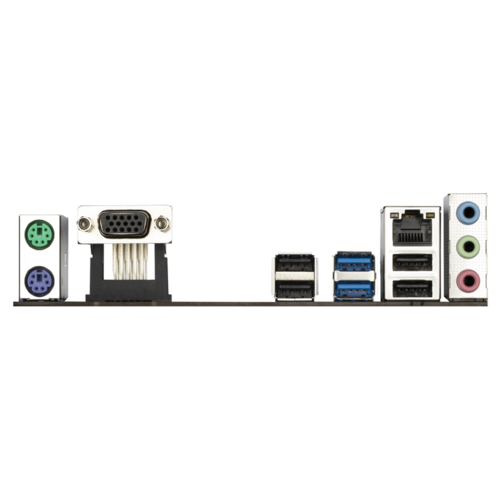

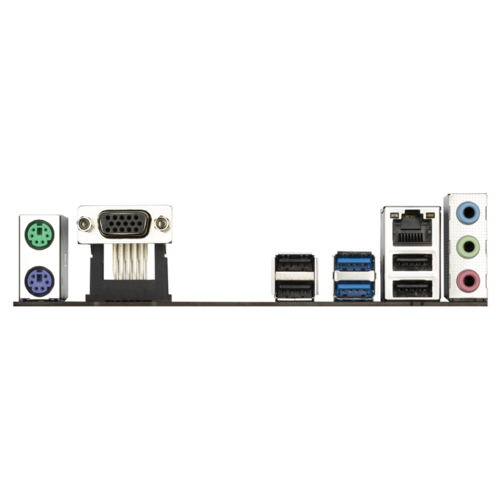

Back Panel Connectors

  1. 1 x PS/2 keyboard port
  2. 1 x PS/2 mouse port
  3. 1 x D-Sub port
  4. 2 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks

I/O Controller

iTE® I/O Controller Chip

H/W Monitoring

  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Overheating warning
  5. Fan fail warning
  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS

  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install

Bundled Software

  1. Norton® Internet Security (OEM version)
  2. LAN bandwidth management software

Operating System

  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 23.0cm x 21.5cm
