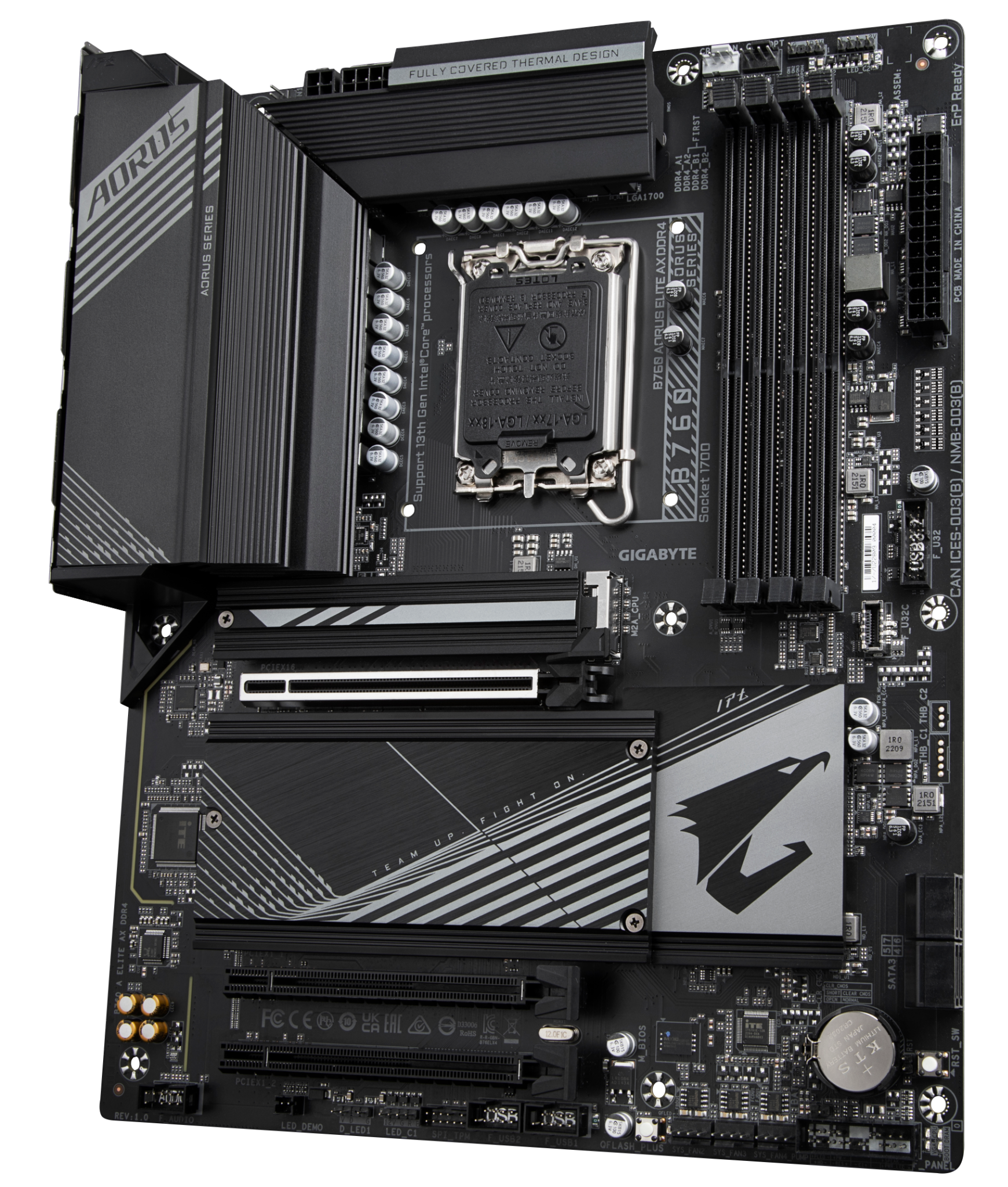

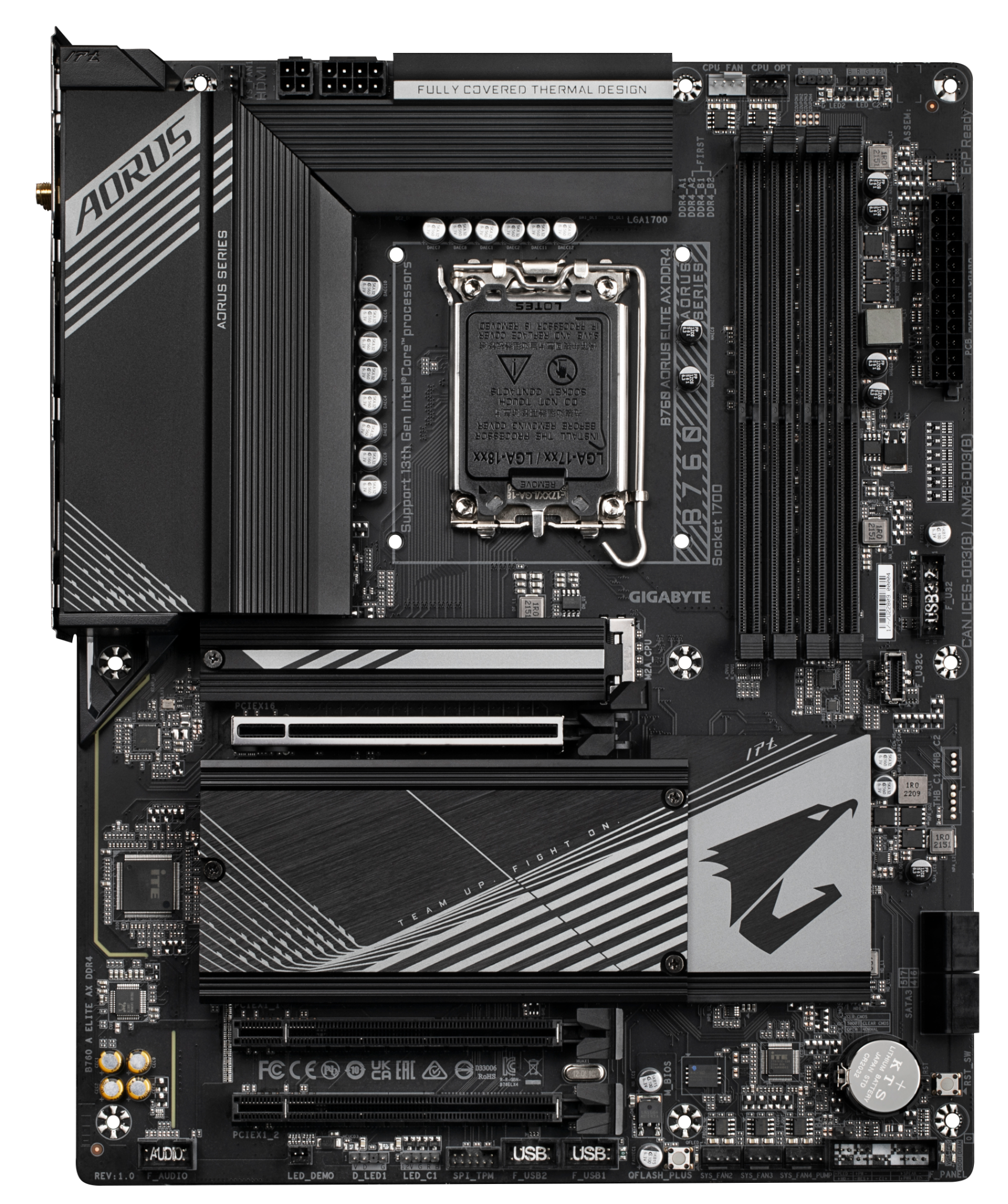

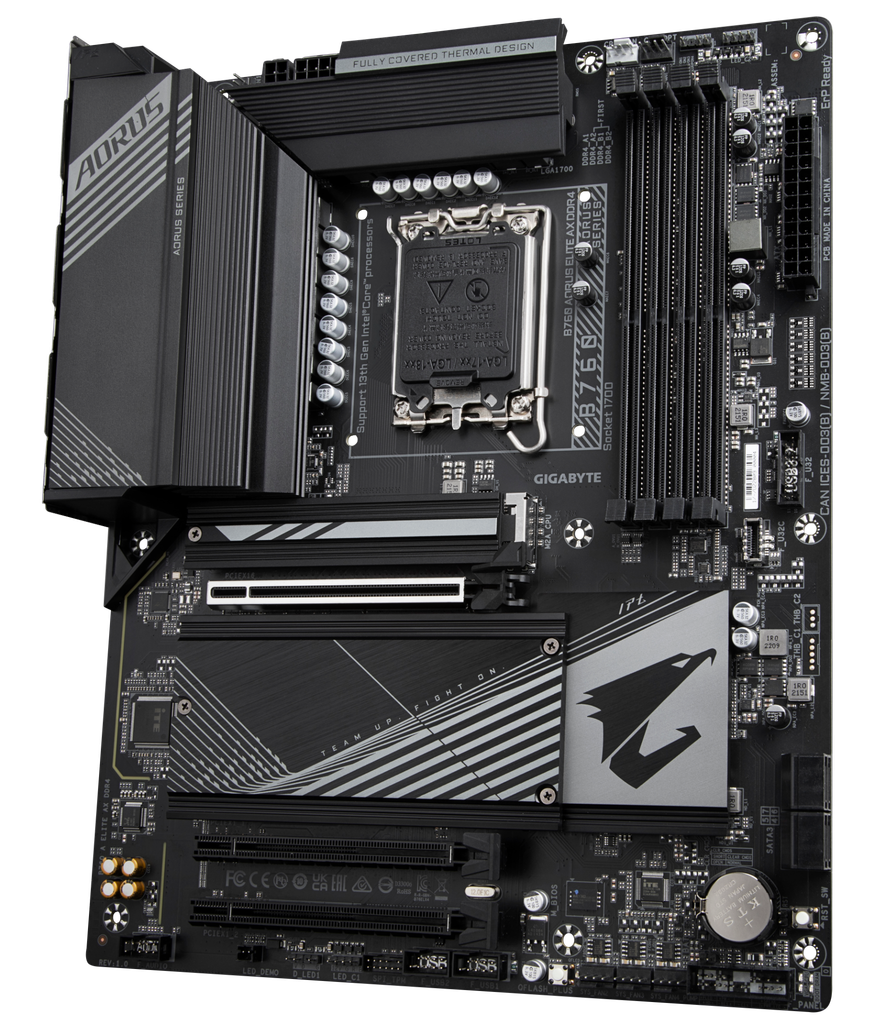

Mainboard GIGABYTE B760 AORUS ELITE AX DDR4

ĐẶC ĐIỂM NỔI BẬT

Bo mạch chủ chơi game dòng AORUS B760 tối ưu hóa hoàn toàn hiệu suất trong bộ vi xử lý Intel® thế hệ thứ 13 mới nhất với thiết kế năng lượng kỹ thuật số có khả năng nhất từ trước đến nay của chúng tôi. Trước khi bạn nhận thấy, nhiệt tạo ra từ việc tiêu thụ điện của con thú đã được xử lý bằng giải pháp nhiệt kim loại hoàn toàn. Lên ngôi vua trò chơi

HIỆU NĂNG VÔ SONG

Với sự thay đổi nhanh chóng của công nghệ, GIGABYTE luôn đi theo xu hướng mới nhất và cung cấp cho khách hàng những tính năng tiên tiến và công nghệ mới nhất. Bo mạch chủ GIGABYTE được trang bị giải pháp năng lượng nâng cấp, tiêu chuẩn lưu trữ mới nhất và khả năng kết nối vượt trội để tối ưu hóa hiệu suất chơi game.

THIẾT KẾ NHIỆT VƯỢT TRỘI

Hiệu năng vô song của Bo mạch chủ GIGABYTE được đảm bảo bởi thiết kế tản nhiệt sáng tạo và tối ưu hóa để đảm bảo CPU, Chipset, SSD ổn định và nhiệt độ thấp nhất trong điều kiện tải đầy đủ ứng dụng và hiệu suất chơi game.

KẾT NỐI

Bo mạch chủ GIGABYTE cho phép trải nghiệm kết nối đỉnh cao với tốc độ truyền dữ liệu nhanh chóng thông qua kết nối mạng, bộ nhớ và WIFI thế hệ tiếp theo.

CÁ NHÂN HÓA

Bo mạch chủ GIGABYTE bao gồm một số phần mềm hữu ích và trực quan để giúp người dùng kiểm soát mọi khía cạnh của bo mạch chủ và cung cấp hiệu ứng ánh sáng có thể tùy chỉnh với tính thẩm mỹ nổi bật để phù hợp với cá tính độc đáo của bạn.

ULTRA DURABLE

Thiết kế GIGABYTE Ultra Durable ™ mang lại độ bền cho sản phẩm và quy trình sản xuất chất lượng cao. Bo mạch chủ GIGABYTE sử dụng các thành phần tốt nhất và gia cố từng khe để làm cho từng khe chắc chắn và bền bỉ.

Xem thêm

THÔNG SỐ KỸ THUẬT

CPU	LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information.
Socket	Socket 1700
Chipset	Intel^® B760 Express Chipset
Memory	Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor-Intel^® HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio	Realtek^® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN	Intel^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Wireless Communication module	Intel^® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment.)
Storage Interface	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB	Chipset: 2 x USB Type-C^® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C^® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Back Panel Connectors	1 x USB Type-C^® port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Operating System	Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
